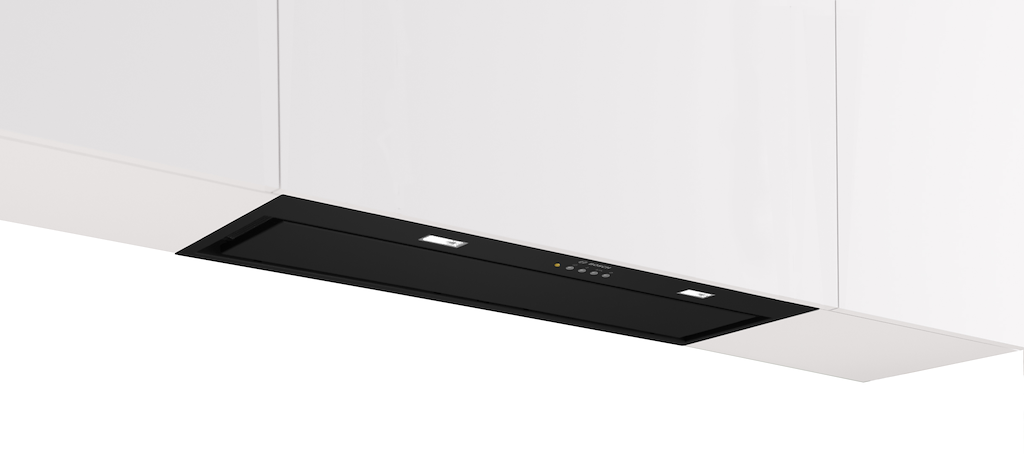

Bosch Series 6 DLN87AC60B, Canopy cooker hood
Design:
- Canopy hood
- Installation: Cabinet

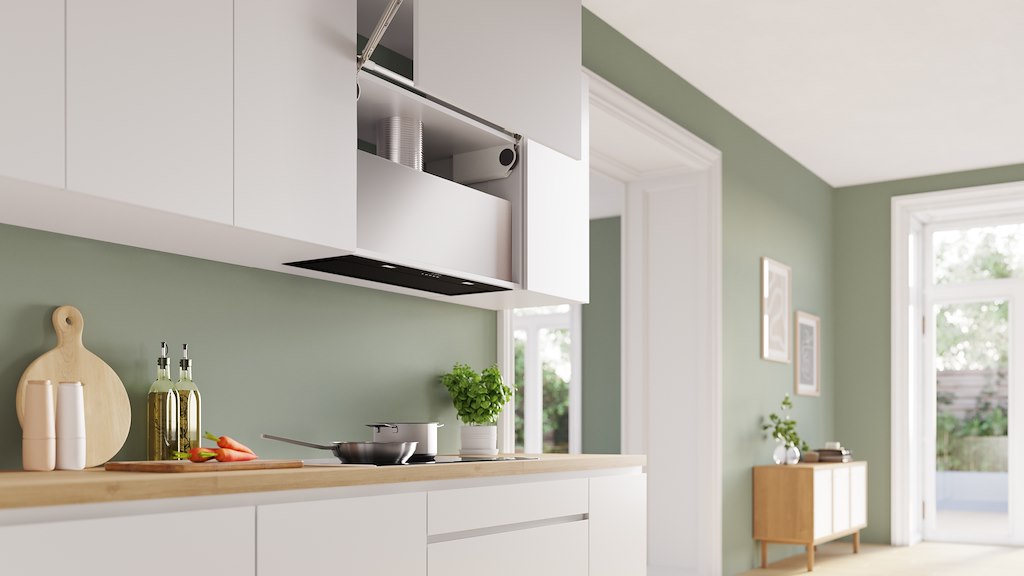

- Flush-fitted installation for a seamless integration in wall cupboards.
- Suitable for ducted or recirculating operation
- For recirculated extraction various recirculation kits are available as optional accessories.
Core Features:
- 2 x 1W LED
- Colour Temperature: 4000 K
- Light Intensity: 400 lux
- Capacitor motor
- 2 metal grease filter(s).
Comfort Features:

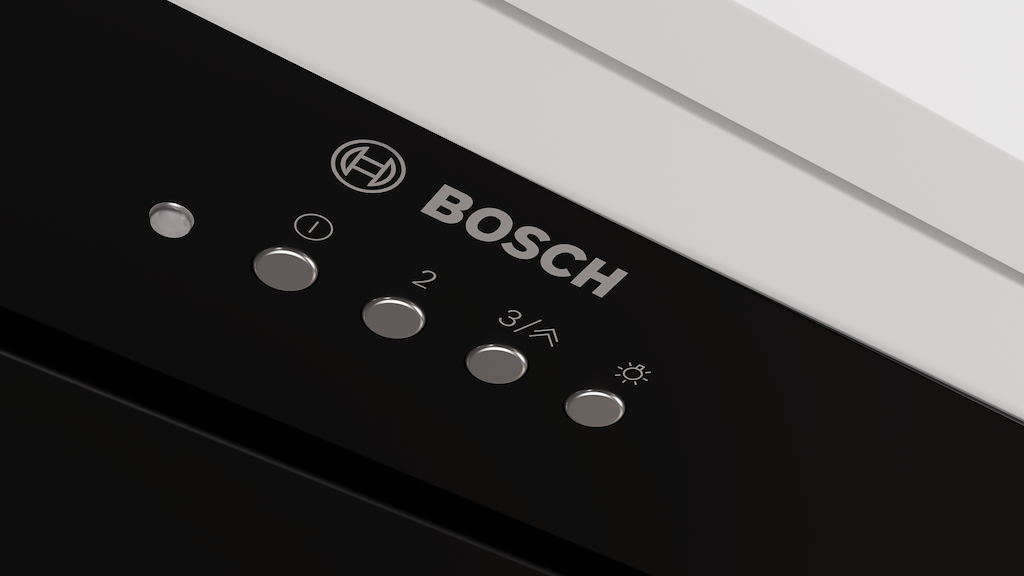

- Soft touch button control with Electronic display
- 3 power levels & intensive setting
- Automatic reset from intensive to normal setting after 6 min
Cleaning Comfort:
- Removable metal grease filters dishwasher-safe
- Easy to clean smooth surfaces and materials.
Performance Exhaust:
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in exhaust mode: Speed 1: extraction rate 285 m3/h; noise level 45 dB (A) re1pW Speed 2: extraction rate 410 m3/h; noise level 51 dB (A) re1pW Speed 3: extraction rate 600 m3/h; noise level 61 dB (A) re1pW Intensive 1: extraction rate 745 m3/h; noise level 65 dB (A) re1pW
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 50.1 kWh/year*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
Performance Recirculation:
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with standard recirculation kit (available as optional accessory): Speed 1: extraction rate 200 m3/h; noise level 59 dB (A) re1pW Speed 2: extraction rate 370 m3/h; noise level 71 dB (A) re1pW) Speed 3: extraction rate 440 m3/h ; noise level 73 dB (A) re1pW) Intensive Speed 1: extraction rate460 m3/h; noise level 74 dB (A) re1pW)
- According to EN 61591 and EN/ IEC 60704-2-13 your appliance can achieve the following values in recirculation mode with Clean Air plus recirculation kit, for chimless installation (available as optional accessory): Speed 1: extraction rate 270 m3/h ; noise level 51 dB (A) re1pW Speed 2: extraction rate 390 m3/h ; noise level 71 dB (A) re1pW) Speed 3: extraction rate 580 m3/h ; noise level 69 dB A) re1pW) Intensive Speed 1: extraction rate 700 m3/h ; noise level 74 dB (A) re1pW)
Technical Information and Sustainability:
- Consumption data:
- Power rating: 252 W
- Voltage: Nominal voltage: 220 – 240 V
- Sustainability:
- Environmentally friendly packaging
- Available odour filter as regenerative Long Life filter with 10 years lifetime
Planning and Installation Information:
- Dimensions (HxWxD): 345 x 860 x 282 mm
- Dimensions recirculating (HxWxD): 345-345 x 860 x 282 mm
- Built-in dimensions (HxWxD): 345 x 676 x 264 mm
- Please reference the built-in dimensions provided in the installation drawings
- Electrical cable length 1.5 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Back-pressure flap: Yes
