Bosch DWF97RV60B, Wall-mounted cooker hood (Discontinued)
Key performance features:
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use394m³/h
- Intensive717 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 57 dB dB*
Features
Home Connect: Remote Monitoring and Control
- PerfectAir sensor
- Hob based hood control

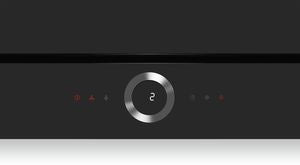

- TouchControl, Control wheel with Electronic display, 2×7-segment
- Electronic display
- 3 power levels and 2 intensive settings
- 2 x 3W LED light
- Colour Temperature: 3500 K
- Dimmer function
- Efficient BLDC technology
- Automatic after running (Automatic run on duration 1-9 min)
- Automatic intensive revert (6mins)

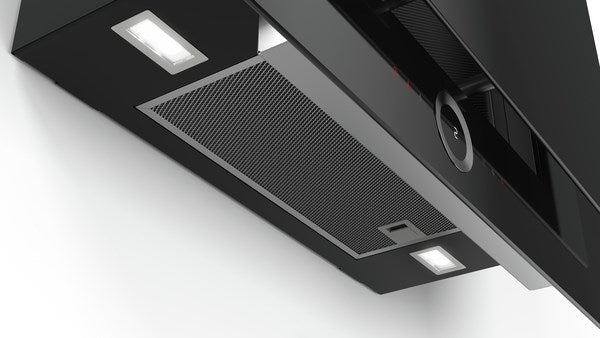

- 2 removable metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
- easy to clean Inner frame
- Installation: wall
- Rim ventilation
Design
- Chimney extractor hood
- TouchControl, Control wheel
Performance/technical information
- Installation with gas hob not recommended
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Installation system: Wall fixing inclined/flat/cube
- Extraction rate according to EN 61591 max. 717 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 57 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:57dB(A) re 1 pW
- Intensive:70 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 57 dB (A) re 1pW
- Power rating: 146 W
- Light Intensity: 589 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 1019-1289 x 890 x 263 mm
- Dimensions recirculating (HxWxD): 1079-1349 x 890 x 263 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 1209 x 890 x 263mm – mounting with outer chimney
- 1279-1549 x 890 x 263 mm – mounting with telescopic chimney
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 40 kWh/year*
Optional accessories
- Recirculating kit DWZ1AX5C6
